Outputs

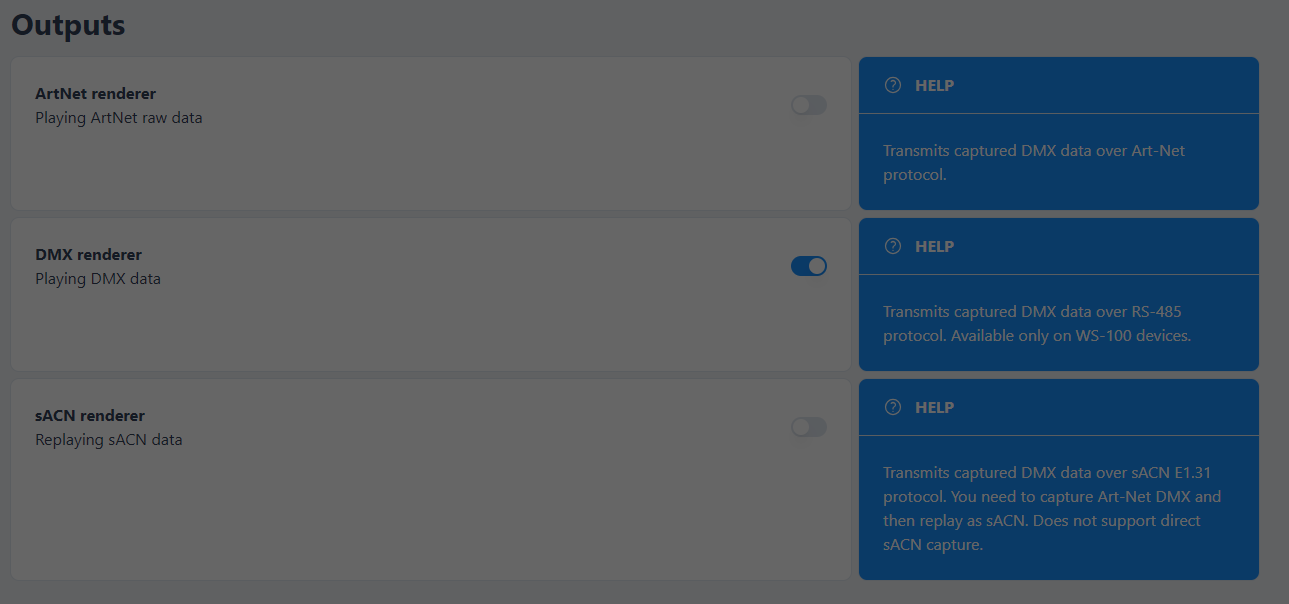

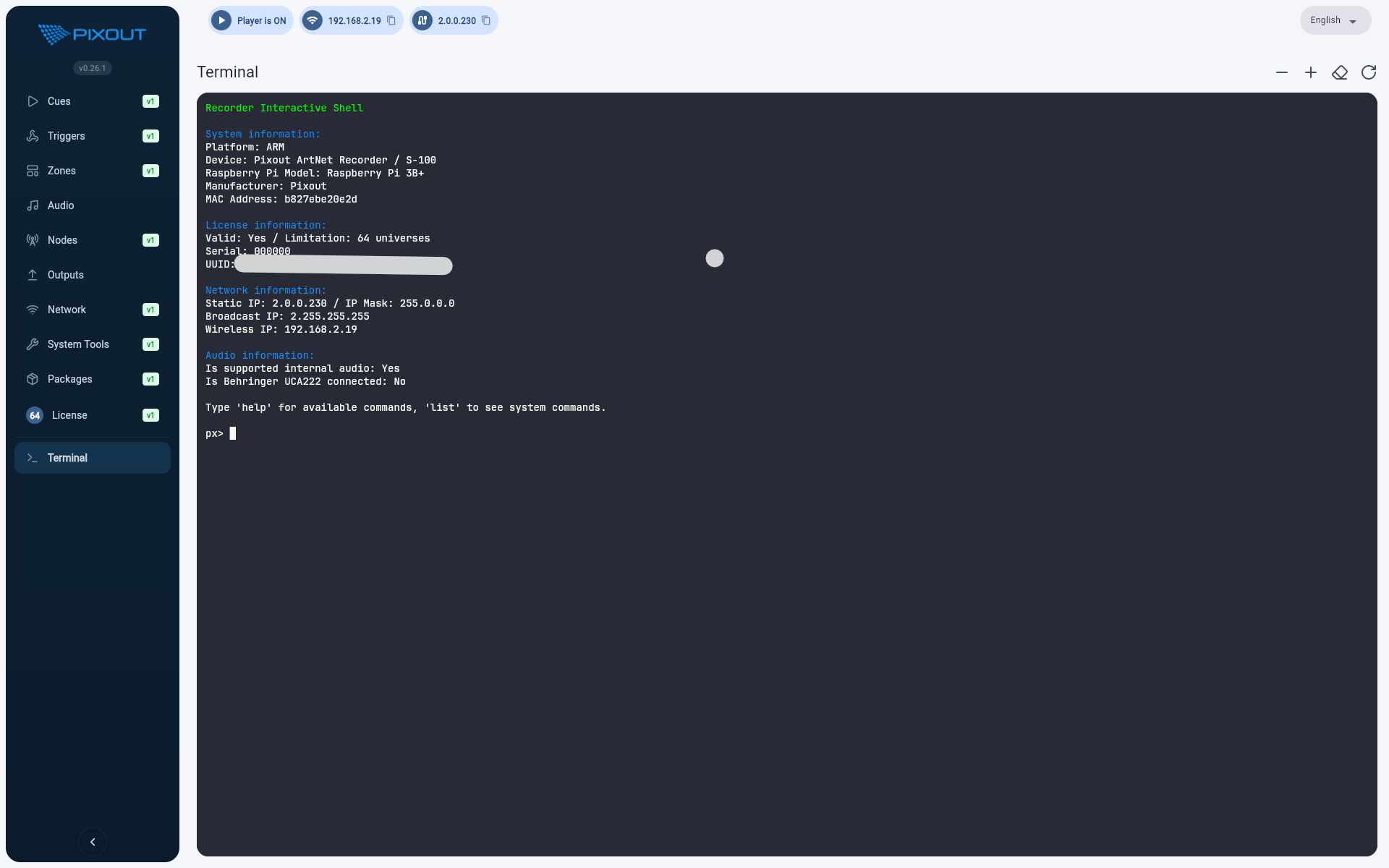

The Recorder is a highly modular system with the possibility to adapt for any business needs. Outputs allow switching the output protocol.
For needed output, please select switch to the ON position.
Beta Version
Feature availalble for beta users ONLY. By default selected Artnet recorder.
DMX Output
info
Output available for WS-100 device only.

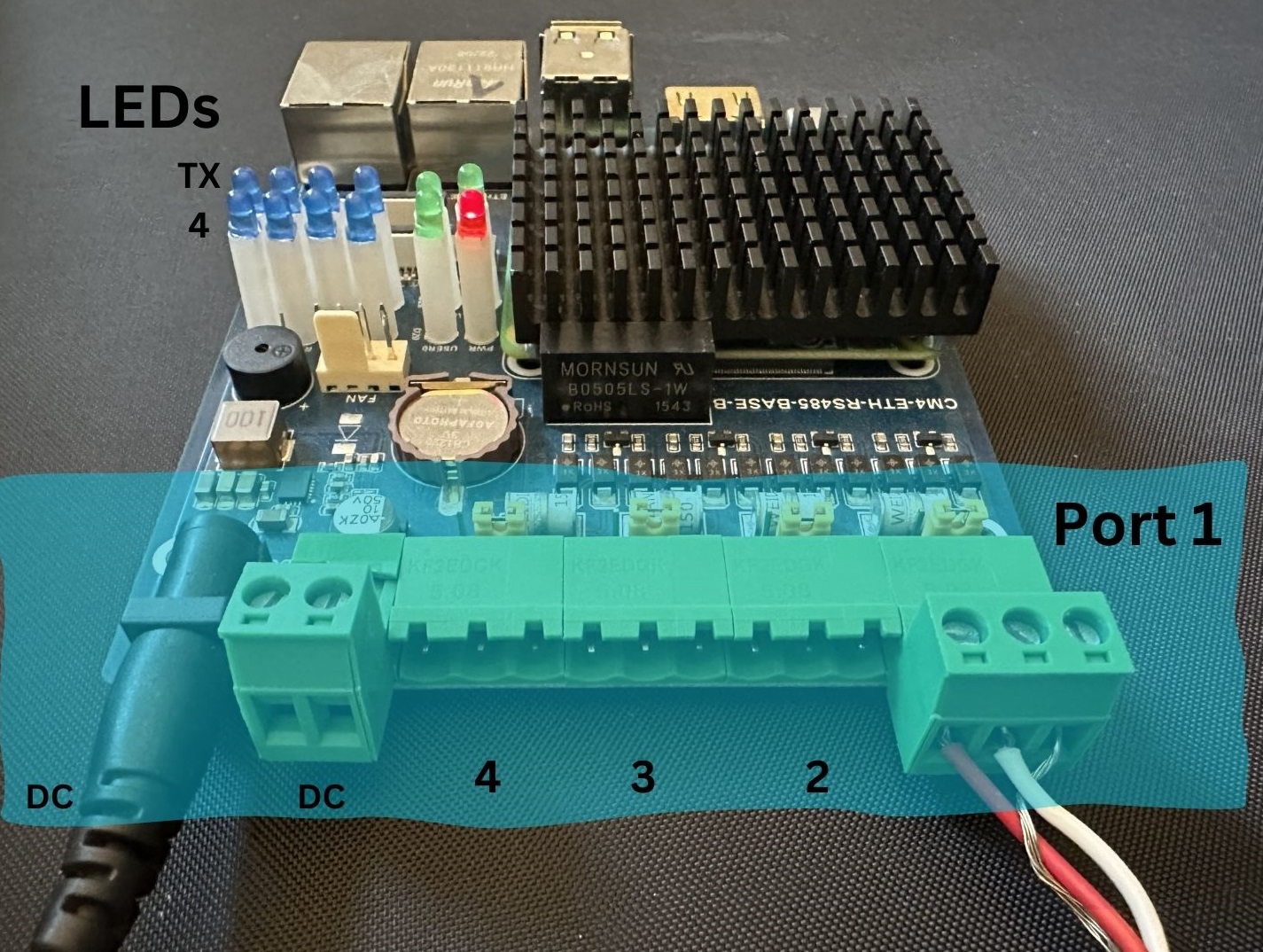

Universe per port, numbering from right to left: 1 (on picture), 2, 3, 4.
The same numbering for blue LEDs TX/RX. Each LED corresponds to each DMX out and starts blinking when data proceed.

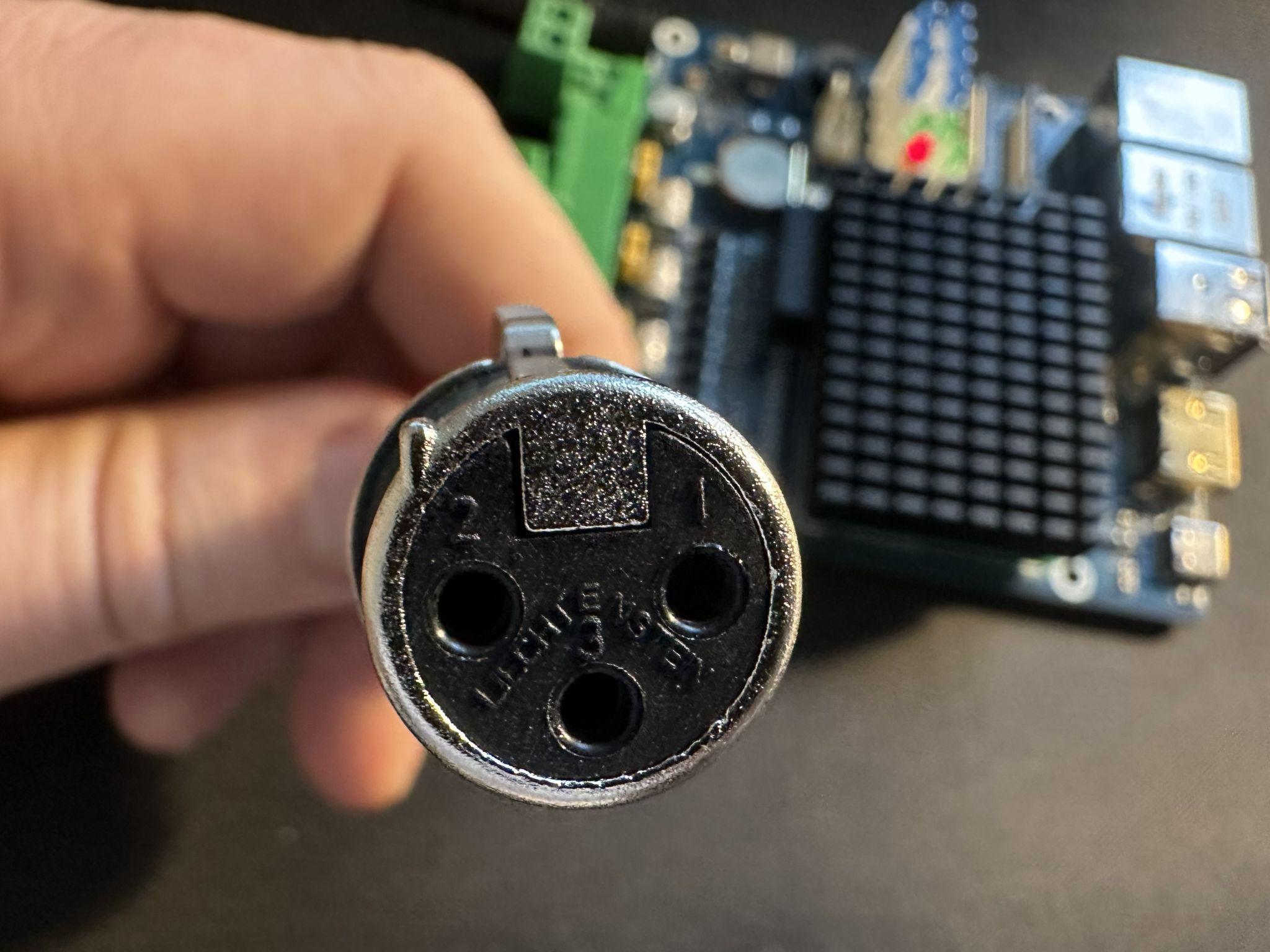

DMX - RS485 Pinout
| Signal | DMX XLR Pin |
|---|---|
| COM | Pin 1 |
| B0- | Pin 2 |
| A0+ | Pin 3 |
Default Universe Mapping
| Universe | DMX Port |
|---|---|
| 0 | Port 1 |
| 1 | Port 2 |
| 2 | Port 3 |
| 3 | Port 4 |
The configuration can be changed manually.
