Overview

Our company vision - simple and user-friendly remote control interface adopted for both novice and tech savvy users, small size and cost effective device for outdoor usage with good performance resource. Based on this vision, we've created Pixout ArtNet Recorder.

What it is​

Pixout ArtNet Recorder (hereinafter "the Recorder") is a standalone, small sized, ArtNet DMX recorder device designed for the outdoor environment.

What it does​

It grabs ArtNet DMX sequences from software/hardware source, saves it internally and plays it back as indicated.

You can remotely manage DMX sequences and adjust settings from Control Panels using web browser or mobile device.

Key features​

  • IP68 Standalone Recorder
  • Triggering (Schedule / GPIO / MIDI / ArtNet DMX)
  • Zones
  • Up to 64 ArtNet DMX universes
  • Remote control (Android / Apple / Web / API)
  • High reliability for architecture, museums, art spaces and other objects

How to do it​

Connect the Recorder to your PC and use your favorite software to create your own ArtNet sequences. Another option is to use MIDI / Lighting Desk to compose sequences.

Tested software​

The Recorder was tested using following software:

  • Madrix
  • Jinx!
  • grandMA2
  • Glediator
  • MagicQ
  • MadMapper

Package includes​

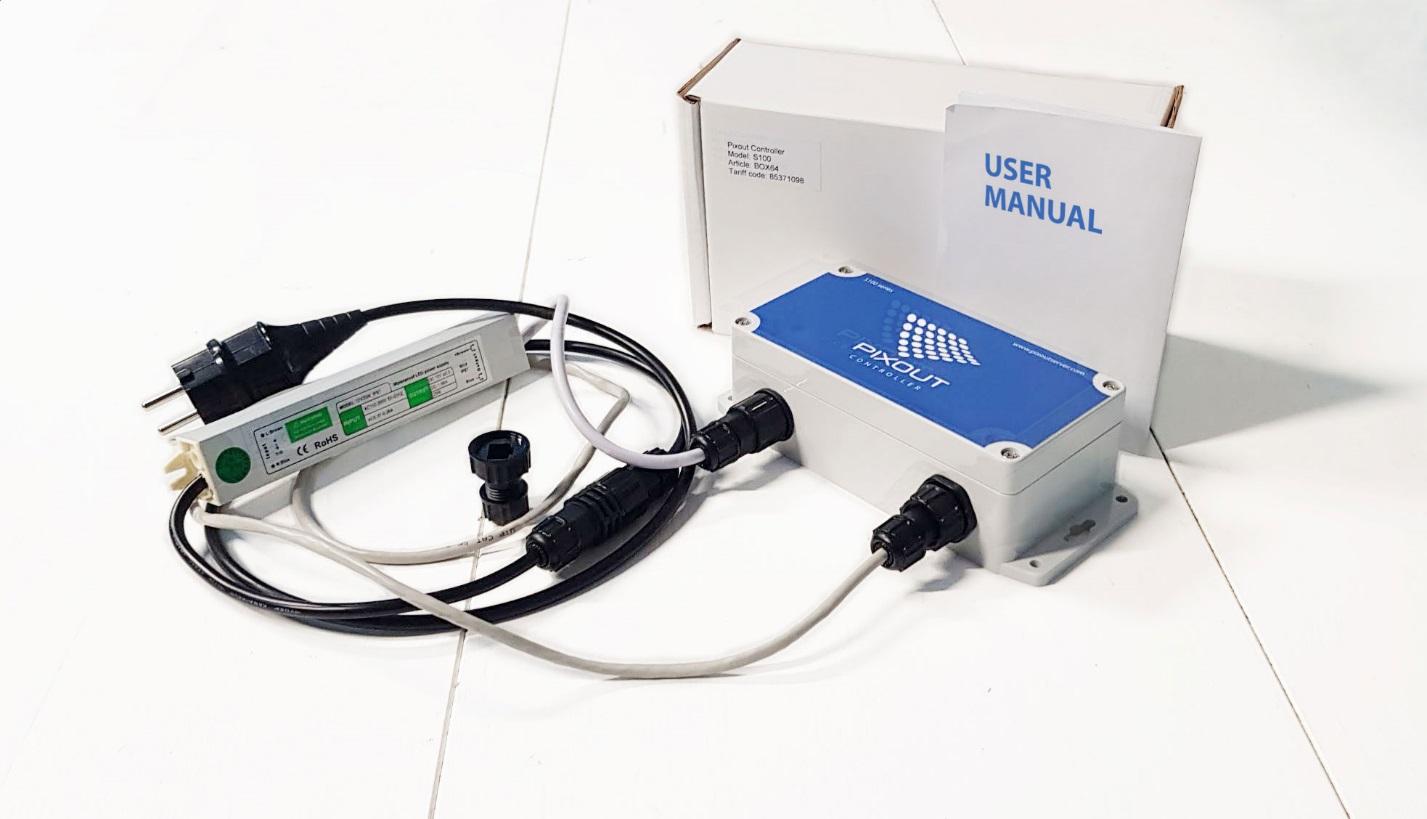

Package contents
Package contents
  • IP68 Pixout ArtNet Recorder / Model S-100
  • IP68 Power Supply
  • IP68 RJ-45 plug
  • IP68 Extension cable with EU/US plug
  • User Guide
  • Carton box
warning

Use only supplied parts for mounting your Recorder. 3rd-party PSU or connectors might damage the Recorder's hardware.

Warranty is not applicable in case of using the Recorder with non-supplied parts.

Product versions​

There are boxed and unboxed versions of Pixout ArtNet Recorder.

Boxed version​

Ready-to-use from the box. Please find the manual about connection in the section Connection.

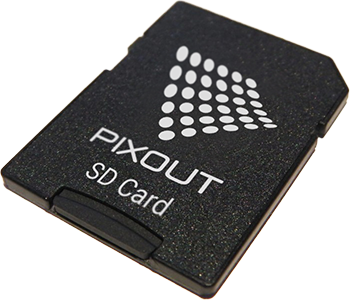

Unboxed version of Pixout ArtNet Recorder software
Pixout ArtNet Recorder Software

Unboxed version​

Built for those who want to assemble their own system, but need stable software/firmware, which would work flawlessly.

We have various licensing options, which allow you to purchase a license for the number of universes you actually need. Please find detailed information about licensing policy in the section Licensing.
