Connection

There is an extension cable with EU or US plug (NEMA 5-15P) on one side and a 3-pin female connector on the opposite side of the package.

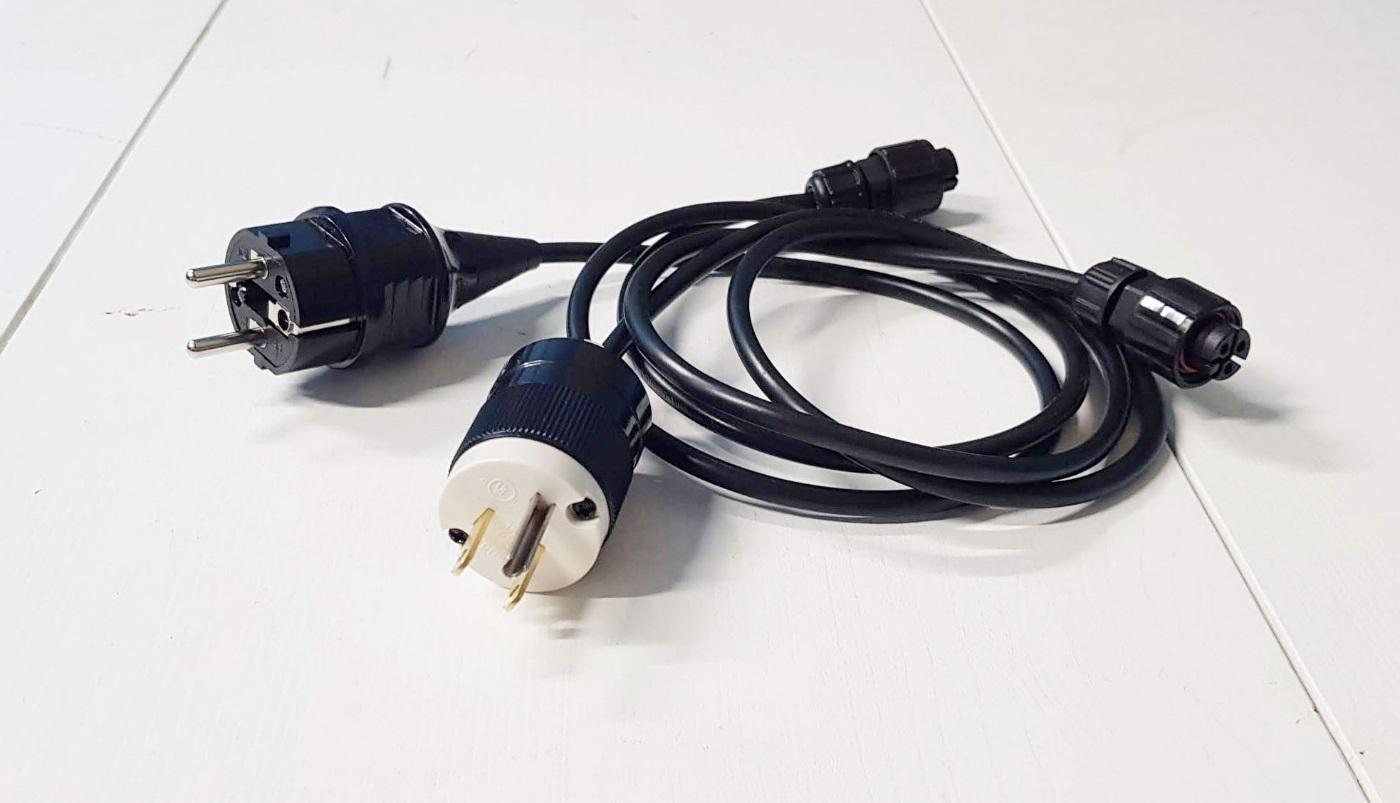

Extension cable with EU/US plug
Extension cables. EU and US plug (NEMA 5-15P)

Step 1: Connect Power Cable​

Connect extension cable 3-pin female with PSU 3-pin male.

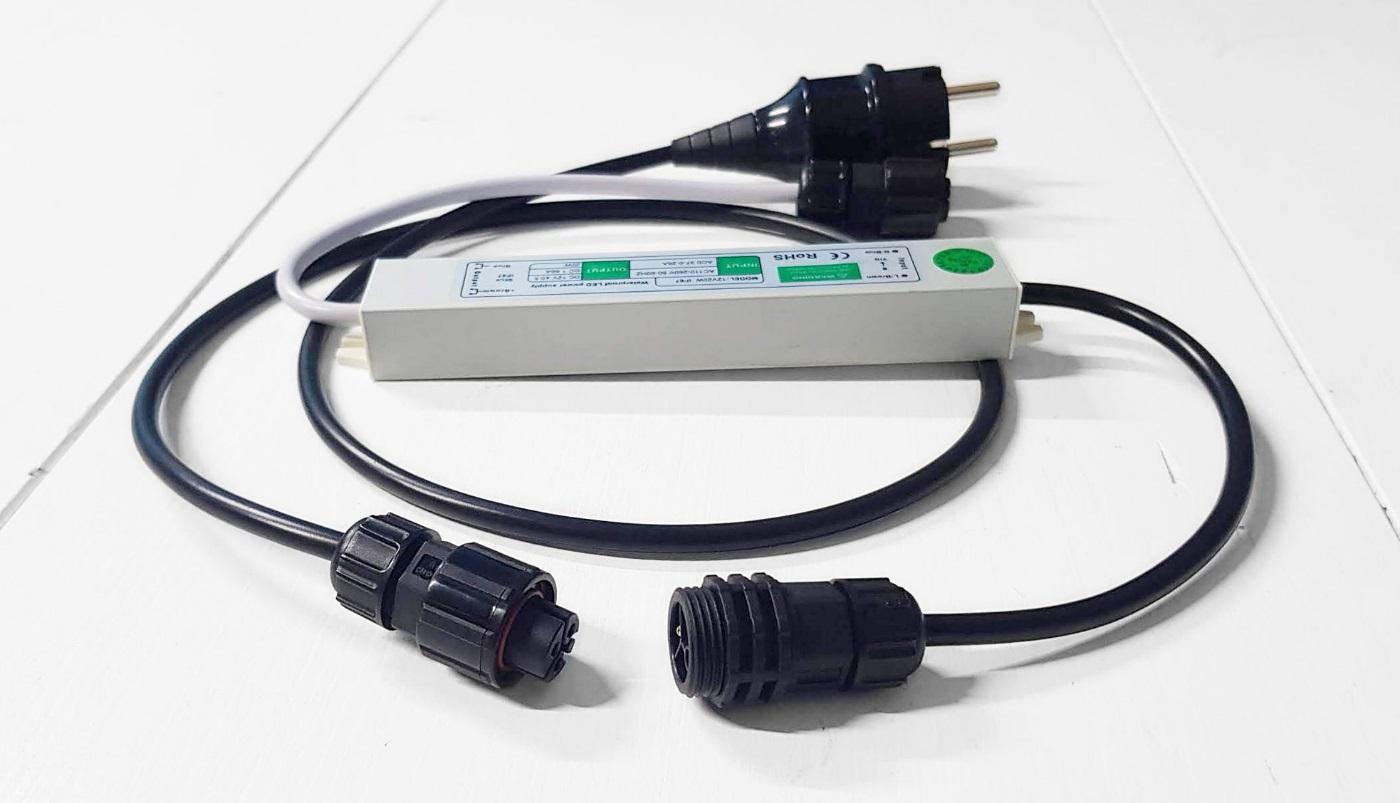

3-pin connector unplugged
3-pin connector. Unplugged

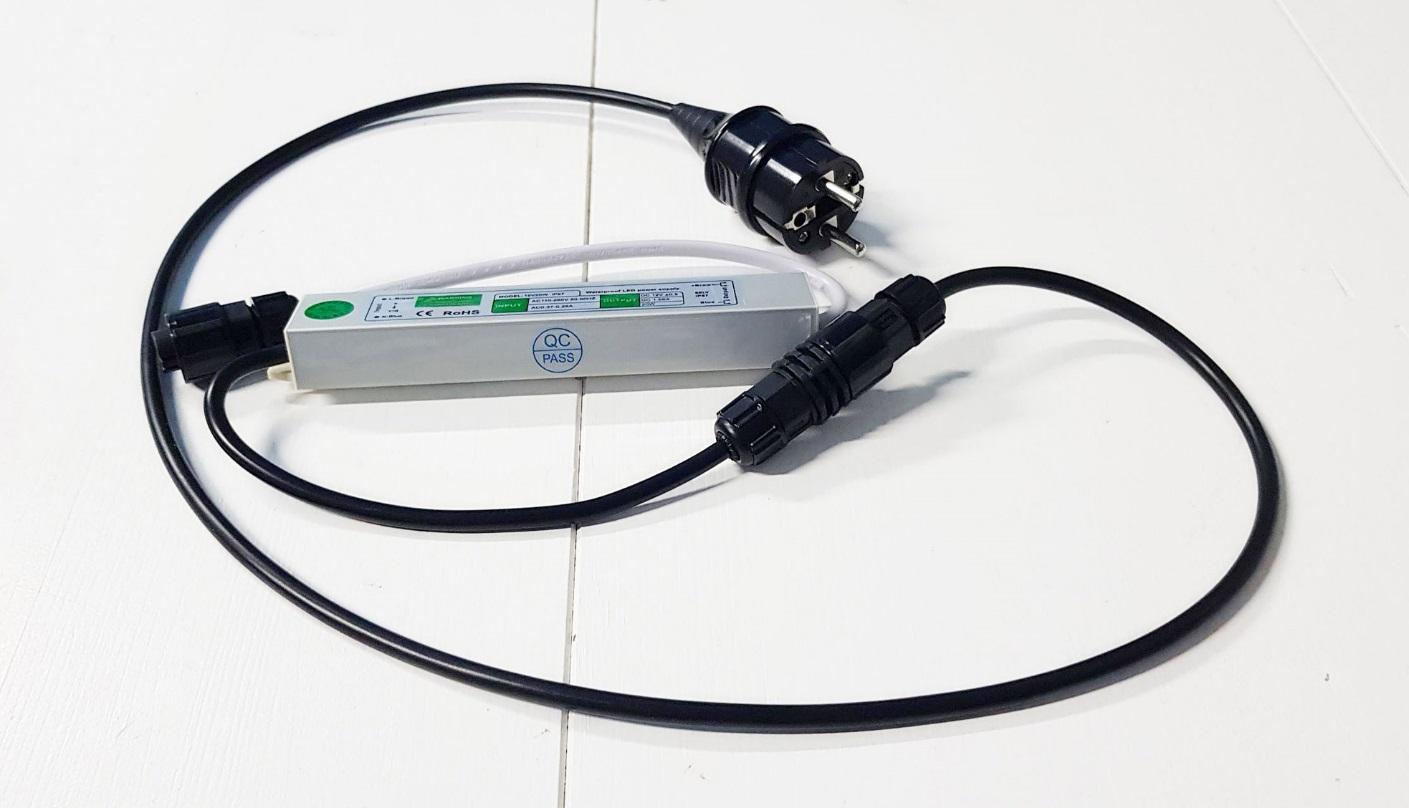

3-pin connector plugged
3-pin connector. Plugged

Step 2: Connect Ethernet​

Connect Ethernet male connector with the Recorder's female connector.

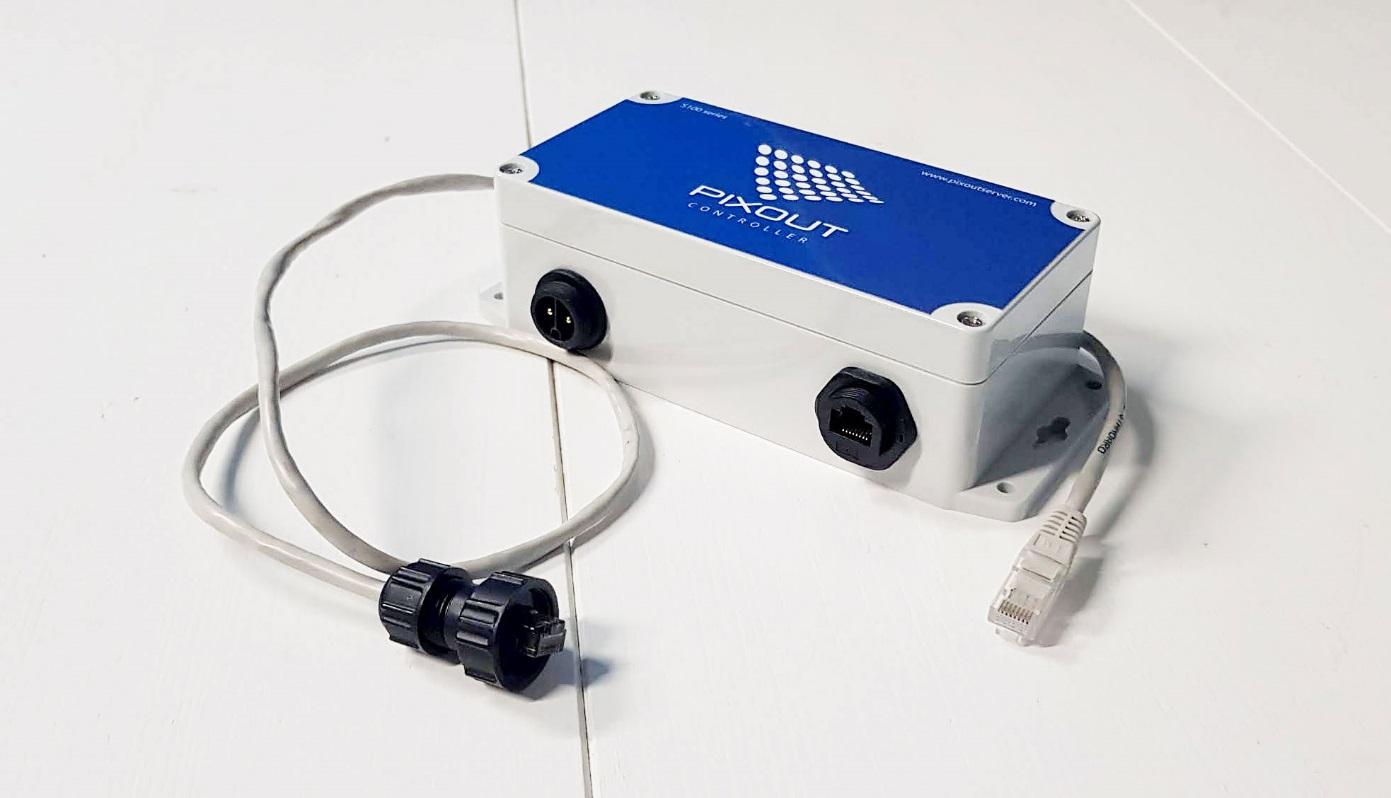

Ethernet connector unplugged
Ethernet connector. Unplugged

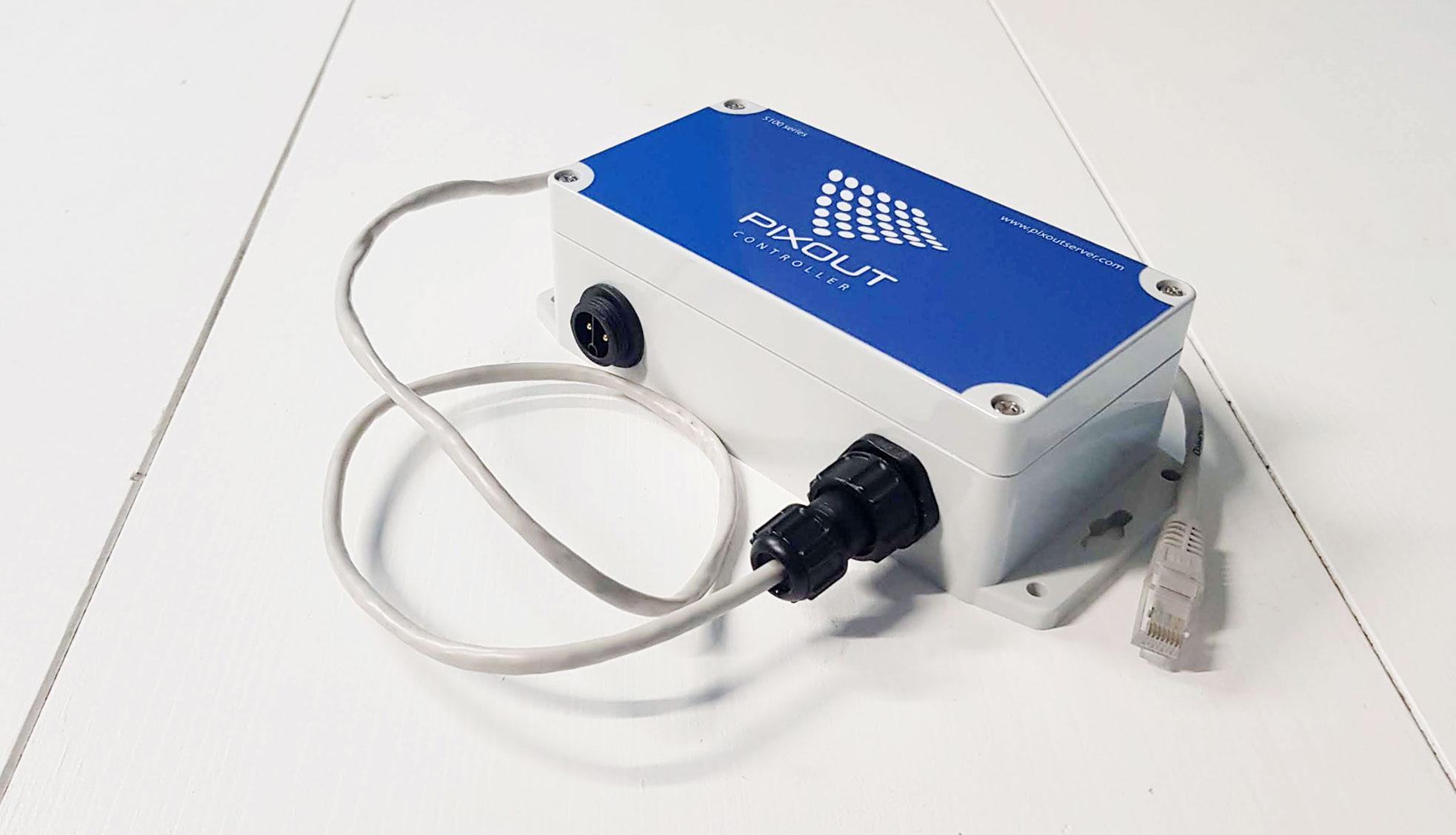

Ethernet connector plugged
Ethernet connector. Plugged

Power ON! Let's go!
