Overview
Pixout HDMI ArtNet Converter is a standalone, rackmount device for digital video to ArtNet DMX conversion. It allows importing and grabbing pixel mapping from any third-party software, eliminating the need to manage complex media servers.
What It Does
The Converter grabs pixel mapping from third-party software or hardware sources, saves it internally, and uses it for HDMI to ArtNet conversion. You can remotely manage the device and select which pixel mapping to use from a web browser.
Key Features
| Feature | Specification |
|---|---|
| Form Factor | Rackmount 1U case with LCD screen |
| HDMI Input | 1600×1200 @ 60Hz |
| ArtNet Output | Up to 512 DMX universes per device |
| Wireless | Built-in WiFi for setup and control |
| Processor | Realtime 2-core ARM A9 / Xilinx Zynq |
| Processing Delay | One video frame |
| Color Modes | RGB/RGBW with conversion |
| Web Interface | Setup, pixel mapping grabbing, import/export |
| Transmission | Unicast/Broadcast, ArtPoll/ArtPollReply support |
How It Works
- Use any pixel mapping software (e.g., ENTTEC LED Mapper, MADRIX)
- Create a pixel mapping - a virtual representation of your LED design
- Each pixel has a position and its DMX address/universe
- Grab the mapping into the Converter using the special calibration image
- The Converter converts HDMI video to ArtNet DMX in real-time
Tested Software
The Converter has been tested with:
- MADRIX 3
- ENTTEC LED Mapper (ELM)

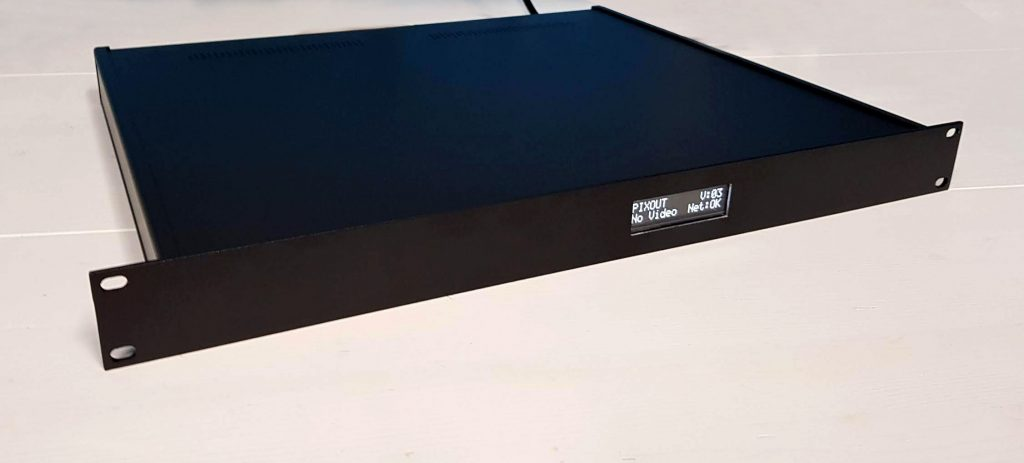

Package Contents
- Pixout HDMI ArtNet Converter (Model VC128)
- EU power plug
- User Guide
- Carton box
warning
You need to provide your own HDMI cable for the Converter connection. Warranty is not applicable when using non-supplied parts.
Use Cases
The Converter is ideal for:
- Architecture and facade lighting
- Museums and exhibitions
- Art installations
- Entertainment venues
- Any project requiring video-to-LED conversion
