HDMI · ArtNet DMX · Converter
Convert HDMI to ArtNet DMX.
No media-server PC.
Real-time video-to-DMX conversion in a 1U rackmount box. Grab pixel mapping from MADRIX, ELM or other — the converter handles the rest.
256
Universes
1600×1200
HDMI in
1frame
Latency
1U
Rackmount
Grabs pixel mapping from
Overview
From pixel-mapping software to LEDs in one box
Plug the HDMI output of your favourite pixel-mapping tool into Pixout, point the ArtNet output at your LED nodes, and you're done. The converter reverse-engineers the mapping once, then runs the show standalone — no licences to renew, no PC to babysit.
Features
What's under the hood
Six reasons LED designers, integrators and OEMs use Pixout instead of a media-server rig — see Hardware and Software below for the full spec sheet.
Real-time video-to-DMX
Single-frame latency from HDMI in to ArtNet out — synchronised media facades, no jitter.
Grab any pixel mapping
Reverse-engineer mappings from MADRIX, MadMapper, ELM or Resolume via BMP/AVI files.
Up to 256 universes per box
VC128 and VC256 cover anything from a single facade to a full stadium scoreboard.
1U rackmount with LCD
Fits any AV rack; on-device LCD shows status, IP and signal at a glance.
Browser-based admin
Web panel works on Windows, macOS, Linux or iPad — Wi-Fi setup, no installer.
White-label & OEM friendly
Branded hardware, software and web panel — your logo, your URL, our engineering.
Comparison
Media-server rig vs Pixout
A side-by-side look at what changes when you swap a media-server PC for a 1U HDMI-to-ArtNet converter.

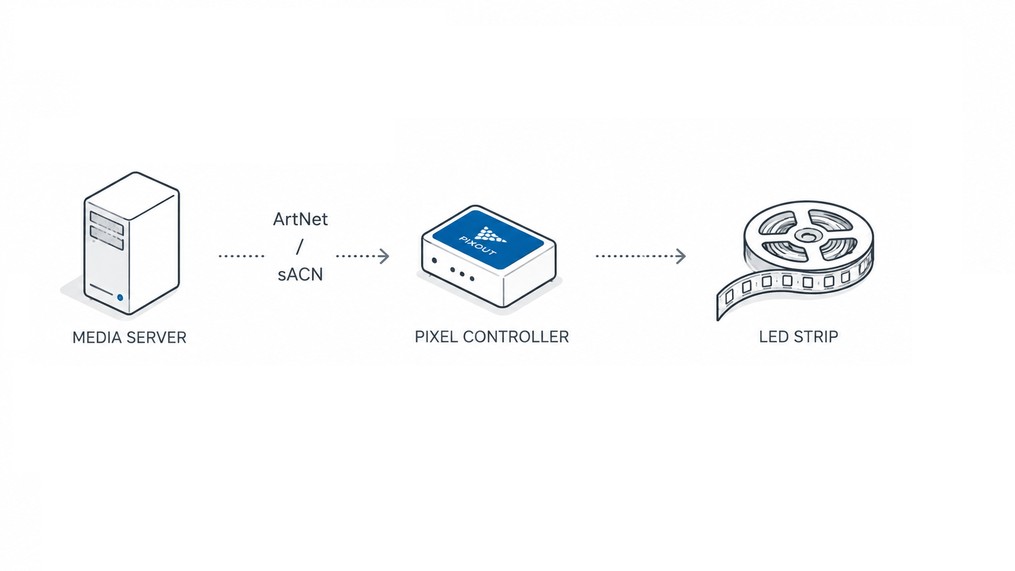

Media-server PC
- Reliability: a dedicated PC must run 24/7 on site, with all its OS and driver fragility
- Footprint: tower or workstation that doesn't fit a 1U slot
- Cost: recurring media-server licences and dongle replacements
- Latency: variable, depends on OS scheduling, GPU drivers and CPU load
- Skills: needs a video engineer to operate and troubleshoot

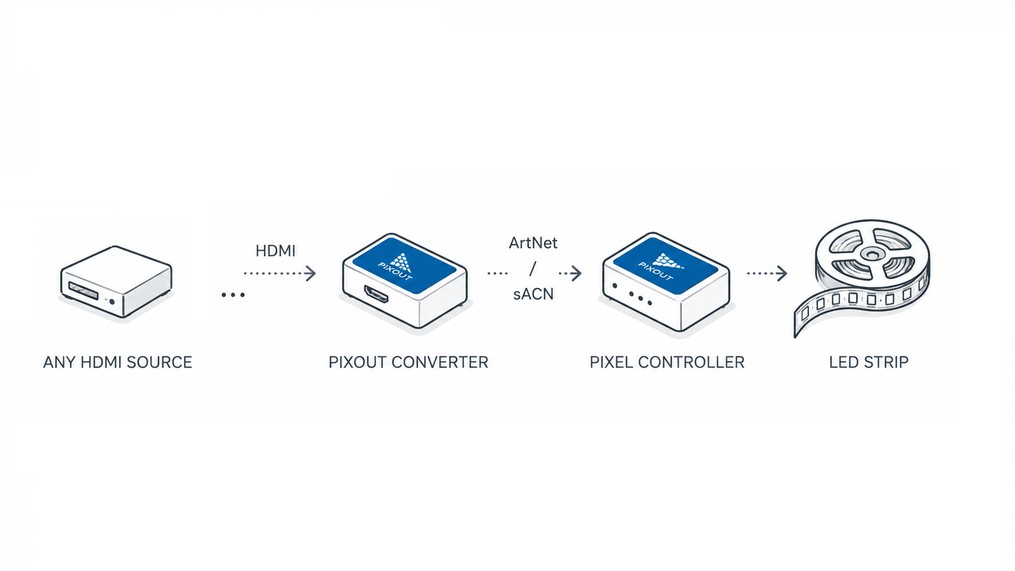

Pixout converter
- Reliability: embedded FPGA + ARM box with watchdog — no PC to crash
- Footprint: standard 1U rackmount with LCD — drops into any AV rack
- Cost: one-time hardware + software licence, no annual fees
- Latency: deterministic — exactly one video frame, every time
- Skills: set up once via the web panel — client runs it from a browser
Compatibility
Works with your favourite pixel-mapping tools
Compatible with any software or hardware that outputs HDMI video up to 1600×1200 @ 60 Hz.
Models
Two sizes — same chassis
Choose 128 or 256 universes per box, then chain multiple converters for any installation size.
VC128 V2
128 universes
from €2,9951U rackmount HDMI→ArtNet converter with 128 universe output. Ideal for single-facade installations and mid-size media displays.
VC256 V2
256 universes
from €3,5841U rackmount HDMI→ArtNet converter with 256 universe output. Best value per universe for large facades, stadium displays and multi-zone setups.
Specifications
Hardware
FPGA-accelerated real-time conversion in a rack-friendly 1U chassis.
HDMI input
Up to 1600×1200 @ 60 Hz · RGB / RGBW conversion
ArtNet output
Up to 256 ArtNet DMX universes per device
ArtNet output
Up to 128 ArtNet DMX universes per device
Latency
Single video-frame delay — real-time playback
Processor
Dual-core ARM A9 · Xilinx Zynq FPGA

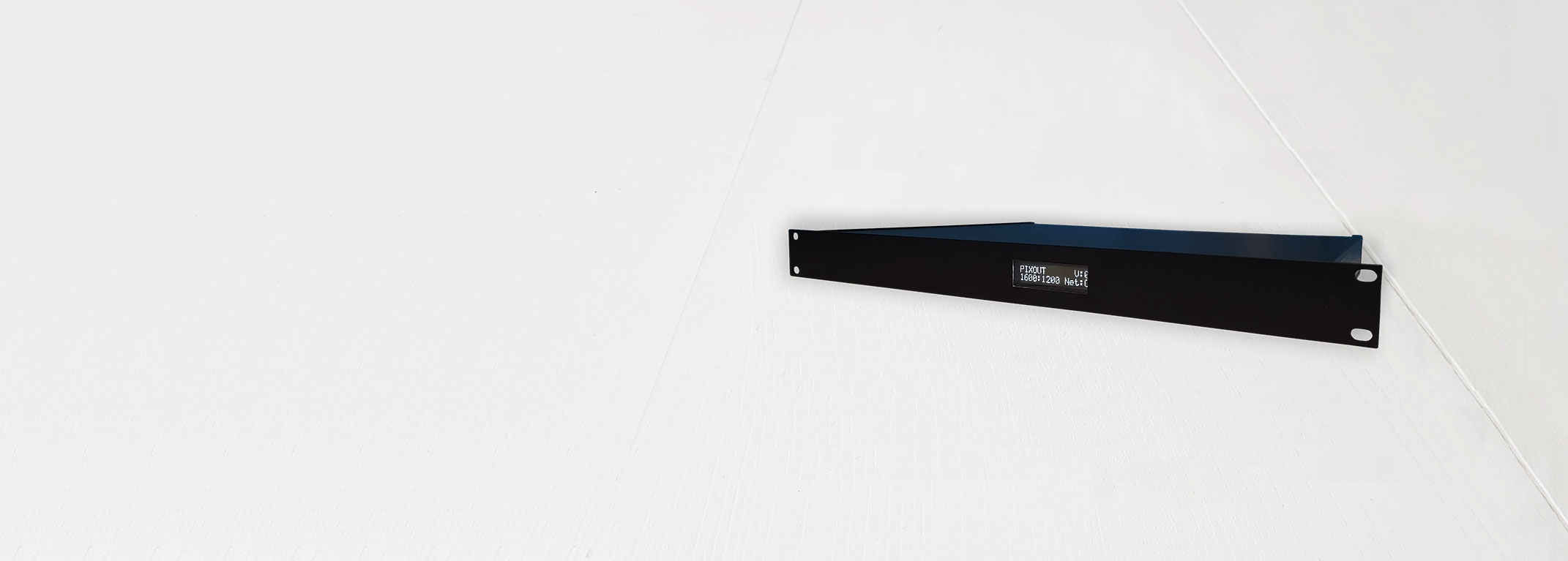

Enclosure
Indoor 1U rackmount chassis with LCD
Transmission
Unicast & Broadcast ArtNet
Wireless setup
Wi-Fi for first-time config & remote admin
Ethernet
Gigabit RJ45 for ArtNet output
Power
110–240V AC adapter included
Warranty
2 years standard · extendable on request
Customization
White-label & OEM versions on request
Specifications
Software
Web admin, pixel-mapping grabbing and multi-device splitting — all from the browser.

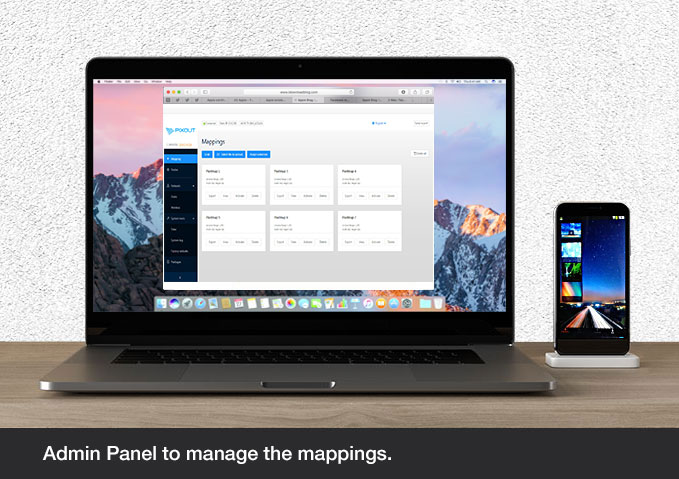

Admin panel
Web-based interface from any modern browser
Pixel mapping import
MPX file import
ArtNet grabbing
Grab pixel mapping from any 3rd-party source
Multi-device split
One mapping across many converters — 255u blocks
Compatibility
MADRIX · ELM · any HDMI source
OTA updates
Automatic over-the-air firmware delivery
Pricing
Transparent pricing
One-time hardware + software licence. No annual renewals, no dongles, no surprises.
VC128 V2
HDMI Converter
1U rackmount · 128 universes
- ArtNet output 128 universes
- HDMI input 1600×1200 60Hz
- MSRP €2,995
VC256 V2
HDMI Converter
1U rackmount · 256 universes
- ArtNet output 256 universes
- HDMI input 1600×1200 60Hz
- MSRP €3,584
B2B program
Volume discounts up to 25%
All B2B accounts get an automatic 15% discount. Your tier grows with your 12-month cumulative spend.
Apply for a B2B account →15%
Tier 1 · automatic
18%
Tier 2 · €5k/yr
20%
Tier 3 · €10k/yr
25%
Tier 4 · €15k/yr
- All prices are MSRP in EUR, exclusive of VAT and shipping.
- White-label / OEM versions priced on request.
- Prices subject to change without notice. Contact sales for the current full pricelist.
Video
See it in action
Resources
Downloads & Documentation
FAQ
Frequently Asked Questions
What HDMI resolutions are supported?
How many ArtNet DMX universes can one converter handle?
What pixel mapping software is compatible?
Can I split a large pixel mapping across multiple converters?
Is there a web interface for configuration?
What is the processing latency?
Is a white-label / OEM version available?
How can I pay for the converter?
Contact
Enquire about the Pixout Converter
Connect with our team to discuss your project needs. We'll tailor a solution and get back to you with pricing within 24 hours.
